| 主板 | PEN- 7135 |
| Dual Intel? Xeon? processor E5-2600 v4/v3 product family |
| Support 9.6 GT/s QPI Speed |
| Intel? C612 |
| Support IPMI 2.0 (Option) |
| One PCIe x8 expansion slot |
| 內(nèi)存 | 16 x 284-pin DDR4 1866/2133 DIMM Sockets, up to 512GB ECC & REG SDRAM |
| LAN | Swappable LAN Modules |
| Support Intel? i350/Intel? XL710 Copper/Fiber ports |
| Support 10/100/1000/10G link speed |
| LAN Bypass: ** please see datasheet |

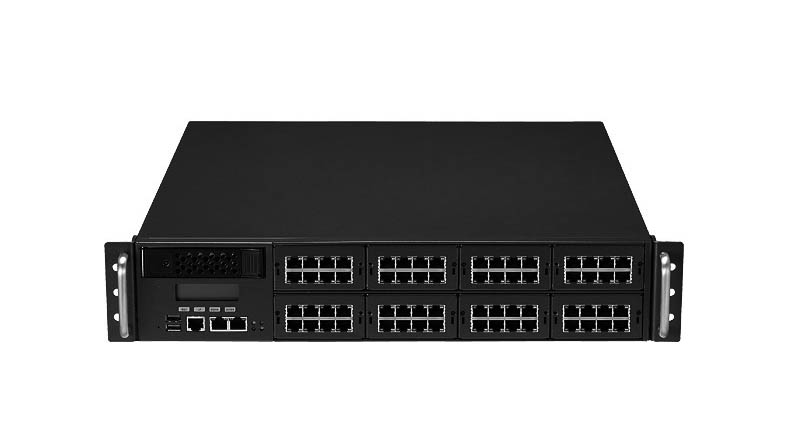

| I/O 前面板接口 | Support 2 x 20 Characters LCD module, SIO interface |
| Power status/HDD status/GPIO status/system failure status LEDs |
| 1 x 3.5" HDD Swappable bays |
| 8 x LAN Module bays |
| 2 x USB 2.0 ports |
| 1 x RJ45 type Console port |
| 1 x Reset button |
| 2 x Management LAN ports |

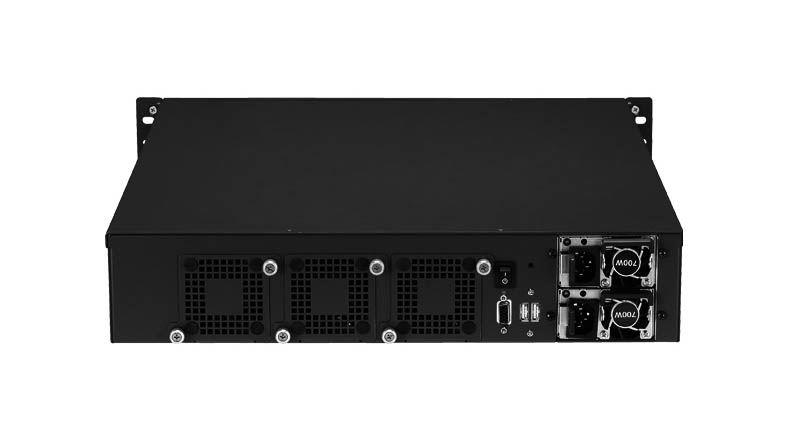

| I/O 后面板接口 | 3 x Swappable System FANs |
| 1 x Power button switch |
| 1 x VGA Port |
| 2 x USB 2.0 ports |
| 存儲 | 1 x on-board CFast socket |
| 電源輸入 | 700W 1+1 CRPS Redundant Power Supply |
| 機箱構(gòu)造 | Chassis Dimension: 432mm x 550mm x 88mm |
| Carton Dimension: 774mm x 636mm x 293mm |
| 重量 | Without packing: 19kg |
| With packing: 25kg |
| 環(huán)境 | Operating temperatures : 0°C~40°C |
| Storage temperature : -20°C~75°C |
| Relative humidity : 10%~90% non-condensing |
| 通過認證 | CE approval??FCC Class A UL |
